DLXM-800/1000/1200
DIALEAD

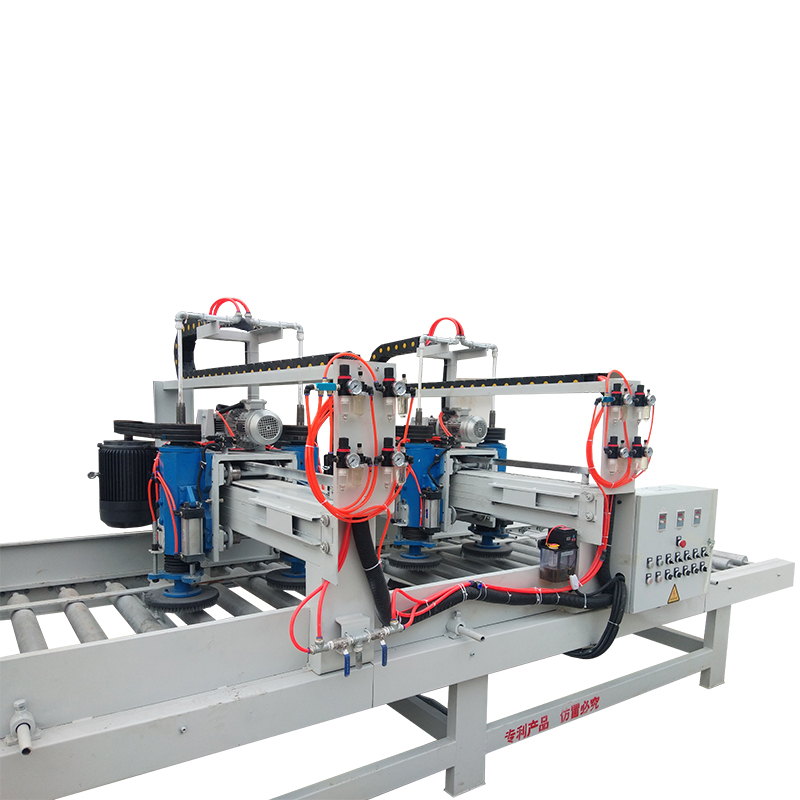

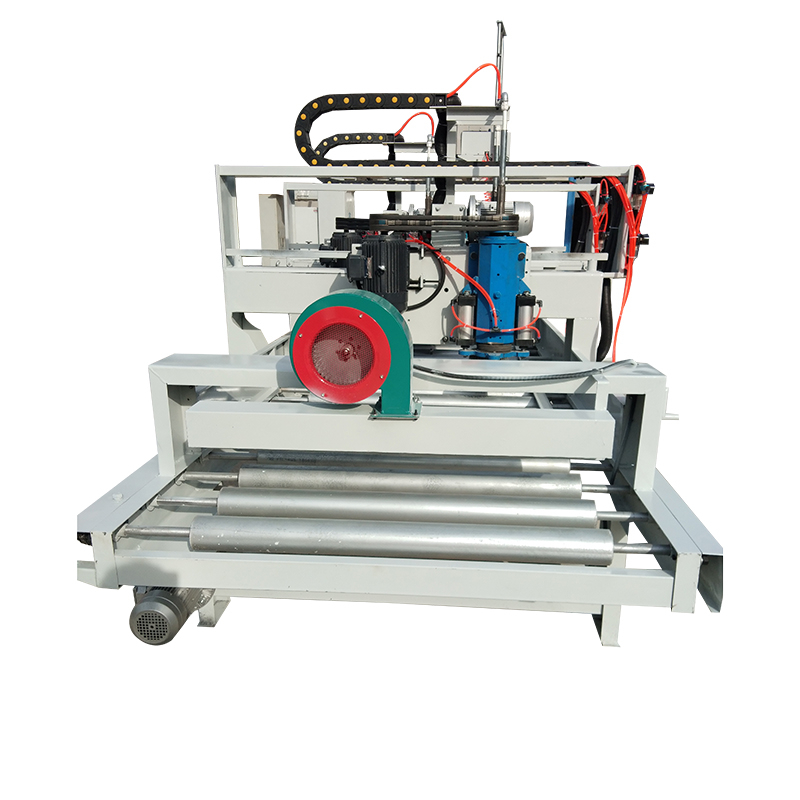

Automatic stone washing and grinding machine is used to wash the rubbish and residue after stone flaming machine or stone bush hammer machine. it is widely applied in granite stone factories.
1. The infrared automatically sense the stone and operates the grinding heads. This machine can automatically lift the grinding heads according to the thickness of the stone, which is time-saving and labor-saving. 2. The grinding pressure can be set by yourself to ensure the uniform grinding quality standard. This machine can effectively remove the debris and slag on the flamed surface, sandblasted surface, lychee surface.
1. This equipment adopts fully automatic control, which is safe and reliable and easy to operate.
2. The infrared automatically sense the stone and operates the grinding heads. This machine can automatically lift the grinding heads according to the thickness of the stone, which is time-saving and labor-saving.
3. The grinding pressure can be set by yourself to ensure the uniform grinding quality standard. This machine can effectively remove the debris and slag on the flamed surface, sandblasted surface, lychee surface and etc. For flamed surface, this machine can achieve very good effect.
4. This machine is flexible and convenient to operate. It can be connected with flaming machine and lichi surface machine to realize assembly line operation and improve work efficiency. This machine can also be operated independently.
Technical Data
| Model | DLXM-800 | DLXM-1000 | DLXM-1200 |
| Heads of grinding | 4 | 4 | 4 |
| Motor power(kw) | 18 | 20 | 22 |
| Cutting length(mm) | 300-3000 | 300-3000 | 300-3000 |
| Cutting width (mm) | 850 | 1050 | 1250 |
| Cutting thickness(mm) | 10-60 | 10-60 | 10-60 |
| Working Efficiency(m2/h) | 100 | 110 | 120 |
| Overall size(mm) | 5000*1300*1800 | 5000*1600*1800 | 5000*1800*1800 |
| Weight (kg) | 1200 | 1500 | 1800 |
| Voltage | 380v 50hz | 380v 50hz | 380v 50hz |
Working Video
After-sales Service
1. Dialead Stone Machinery offer one year's warranty
2. For consumables, Dialead Stone Machinery sends one extra set with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Certificate
Our Partners
Dialead Enterprise
Dialead Stone Machinery is a leading manufacturer and supplier of stone equipment in the industry. Our company is dedicated to offering a good variety of stone machinery that can meet your every need of stone processing. With an experience of more than 20 years, Dialead already grows to be a reliable and trustworthy partner for our clients.
At Dialead Stone Machinery, we understand the importance of precision and accuracy in terms of stone processing. As such, we have invested in state-of-the-art technology and equipment to ensure that all our products meet the highest quality standards. Our team of experts is highly skilled and experienced in the field of stone machinery and is committed to providing our clients with the best possible solutions.
We offer a wide range of stone machinery products, including stone cutting machines, stone polishing machines, stone profiling machines, and diamond tools. Our products are suitable for use in various applications such as construction, decoration, and landscaping.
At Dialead Stone Machinery, we always provide excellent customer service. We work closely with our clients to understand their needs and requirements, and we go the extra mile to ensure that we deliver on our promises. Our team of experts is always available to offer guidance and support throughout the entire process, from product selection to installation and after-sales service.
In summary, at Dialead Stone Machinery, we are committed to providing the best possible stone machinery solutions to our clients. Our commitment to quality, innovation, and customer satisfaction is what tells us apart from the competition.
Dialead is always looking forward to working with all clients at home and abroad.
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
