| Quantity: | |
|---|---|
DLBPM-1600
DIALEAD
PLC Linear Profile Cutting Machine is for shaping architectural shaping such as profile, Roman column and other diverse shapes on granite and marble.
Fully controlled by microcomputer, high cutting efficiency is achieved by double blades working simultaneously. Once the shape model is given, it can automatically track the locus and program to finish the working.
It is specially design for processing large stone plate. The cutting width is up to 1.600mm due to the gantry structure design. With the wide-span crossbeam and precision lead screw, it not only provides more machining accuracy, but also avoids distortion after long-term use.
Precision mechanical parts and Japanese name brand electric parts are equipped in this machine which provides high efficiency, stability, reliability and long service life.
Technicial Data
| Model | DLBPM-1600 |
Blade diameter (mm) | 350-600 |
Max. cutting length (mm) | 3000 |
Max. cutting width (mm) | 1600 |
Max. cutting height (mm) | 350 |
Main motor power (kw) | 15 |
Cutting speed/ (mm/min) | 0-7500 |
Water consumption (cbm/h) | 4 |
Overall dimension (mm) | 5200X2600X2400 |
Total Weight (kg) | 5,500 |

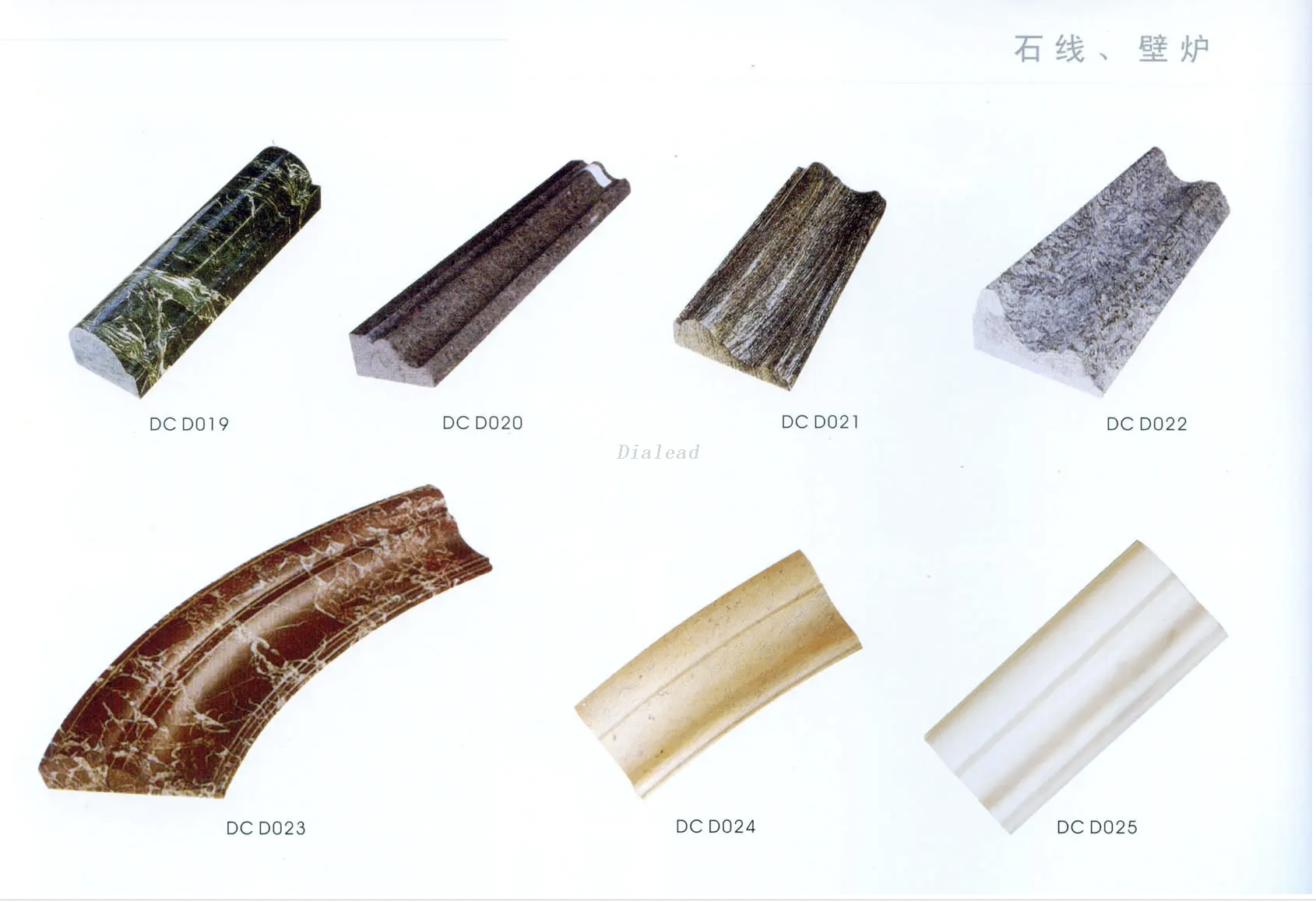

Stone Shape
 |  |
Customer case
 |  |
Stone Tools
After-sales Service
1. Dialead Stone Machinery offer one year's warranty
2. For consumables, Dialead Stone Machinery sends one extra set with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Certificate
Our Partners
Dialead Enterprise
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
